Wide Web Anilox Roller Cleaning Big Mach ultrasonic Anilox Cleaning Machine

Floor Standing anilox cleaning solutions machines available in 3 Face Lengths as standard. This range of apparatus designed to clean big and heavy rollers.

OPTIONS

Auto dosing pump for detergent.

1. Remote Access for fault finding.
2. Diaphragm DrainPump for Emptying the cleaning solution.

• Micro  Computer Controlled Ultrasonic Generators: Provides a fast & gentle cleaning.

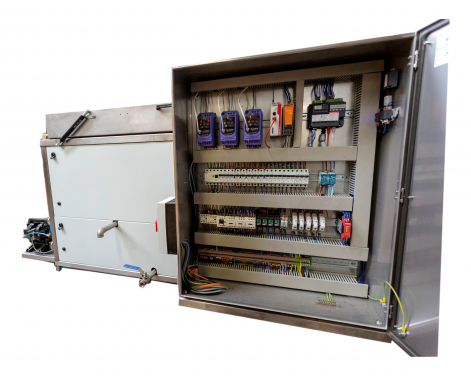

• PLC touch screen controls: Easy to operate with clear instructions.
• Frequency sweep circuit: Eliminates ‘hot spots’ in the solution to avoid roller damage.
• 24/7  Heater control: Set the heating to come on whenever you want so the tank is ready when you want.
• Low  water level lockout: Stops the machine from overheating when the tank is empty to reduce operator error.
• PLC driven fault-finding diagnostics: Identifies any problems should they arise.
• Bi-direction roller rotation: Provides an even clean with little input from the operator, prevents roller creeping or staying in one position.
• Multi-lingual instruction facility – Touch screen instructions & commands in the language of your choice.

Our ultrasonic anilox cleaning machine tanks offer an outstanding clean for anilox rollers without the need to remove gears or bearings and giving a high level of anilox sealant care.

No rollers are too large for this group of machines.Three-phase Inverter controlled geared motors are used to rotate these heavy rollers both in the wash and rinse tank.

THE MULTI ROLLER OPTIONS WILL CLEAN ROLLERS WITH DIFFERENT FACE LENGTH SIMULTANEOUSLY.

Will clean rollers with face lengths of up to 2500mm and diameters of 300mm.

There are four machines offered in this range:

One Roller: This machine can only wash one roller at a time. A single roller powered rinse tank supplied as standard.

Two Rollers: This machine can wash two rollers simultaneously. A single roller powered rinse tank supplied as standard.

Three Rollers: This machine can wash three rollers simultaneously. A single roller powered rinse tank supplied as standard.

Four Rollers: This machine can wash four rollers simultaneously. A single roller powered rinse tank supplied as standard.

3000 WILL CLEAN ROLLERS WITH FACE LENGTHS OF UP TO 3000 MM AND DIAMETERS OF 300MM.

There are two machines offered in this range standard:

One Roller: This machine can only wash one roller at a time. A single roller powered rinse tank supplied as standard.

Two Rollers: This machine can wash two rollers simultaneously. A single roller powered rinse tank supplied as standard.

4000 WILL CLEAN ROLLERS WITH FACE LENGTHS OF UP TO 3000MM AND DIAMETERS OF 300MM.

There are two machines offered in this range standard:

One Roller: This machine can only wash one roller at a time. A single roller powered rinse tank supplied as standard.

Two Rollers: This machine can wash two rollers simultaneously. A single roller powered rinse tank supplied as standard.

• All units include automatic filtration as standard.
• All units include a hinged lid as standard.
• Adjustable roller supports supplied as standard.
• Fast and easy to operate with touch screen controls simplifies multi-stage operation to one press of a button.
• Designed to clean your rollers with minimal input from the operator.
• Frequency sweep circuit which automatically changes the frequency to reduce the chance of any ‘hot spots’ in the liquid that could potentially damage items.
• Constructed from stainless steel 316.
• Low consumption of cleaning detergents.
• Bespoke to individual customer requirements‍.

Applications:
For cleaning laser-engraved ceramic and chrome-plated Anilox rollers and sleeves.
Suitable for water-based, solvent-based and UV inks and coatings.

Warranty:
All Camsonic models have a 2-year warranty on all parts.
